Κωδικός Προϊόντος: ER50C-4DN.E7.CR
Τεχνικά Χαρακτηριστικα:

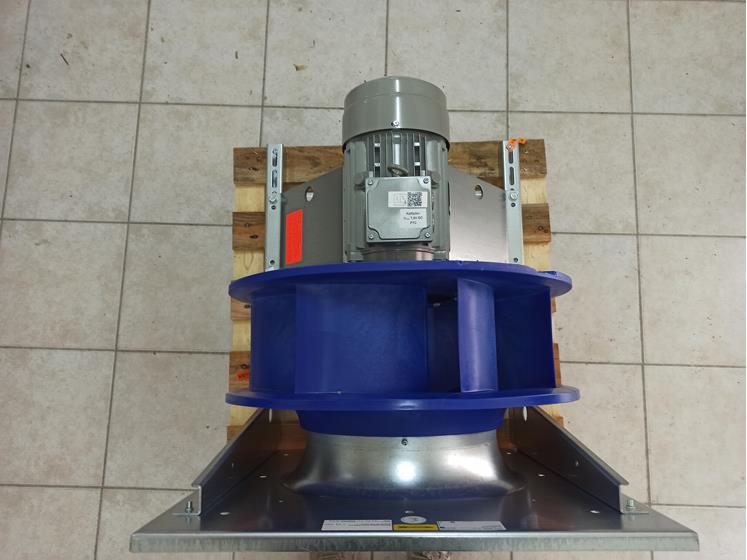

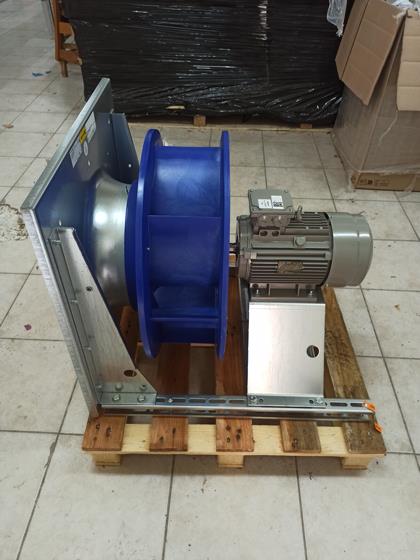

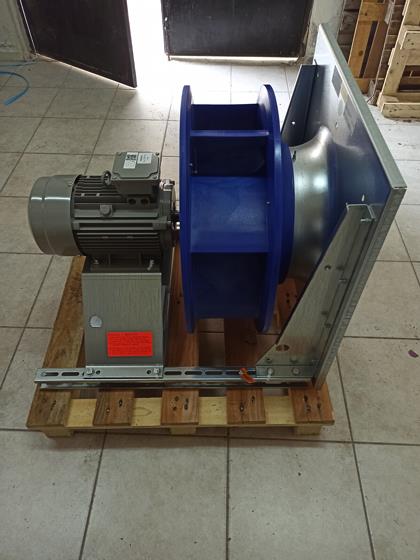

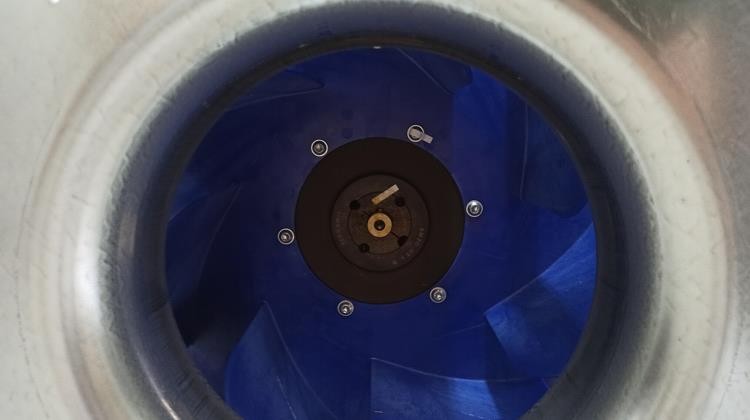

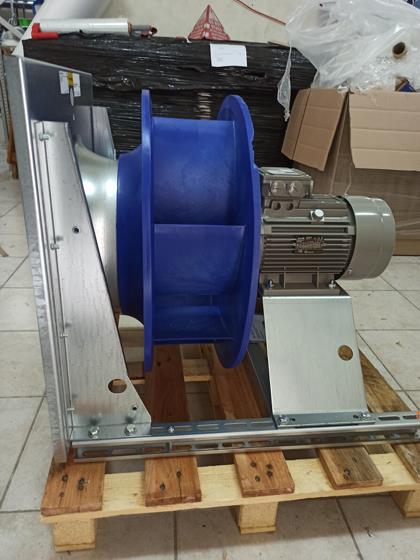

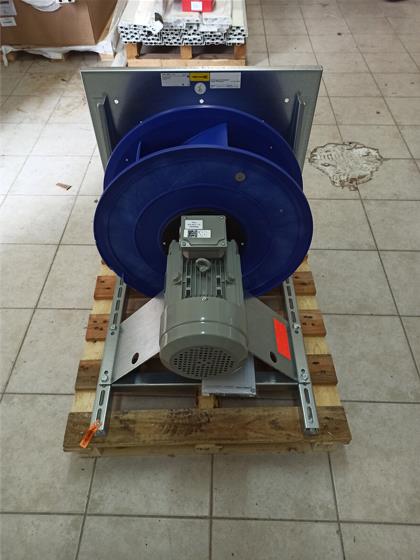

- - Plug fan with high performance centrifugal impeller Impeller made of ZAmid unpainted like RAL 5002 (ultramarine blue)

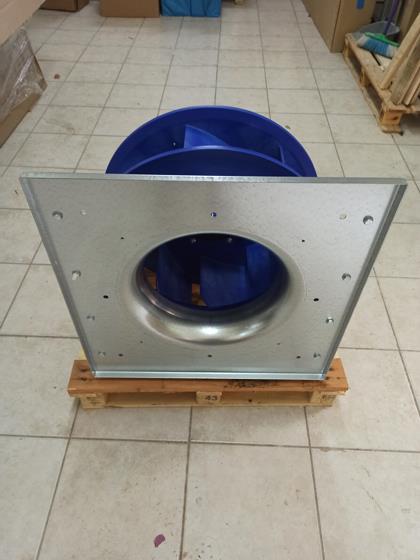

- - Inlet nozzle with measuring device for air flow measurement
- - Fitting position H (horizontal)
- - Rated voltage UN : 3~ 400 V
- - Rated frequency fN : 50 Hz

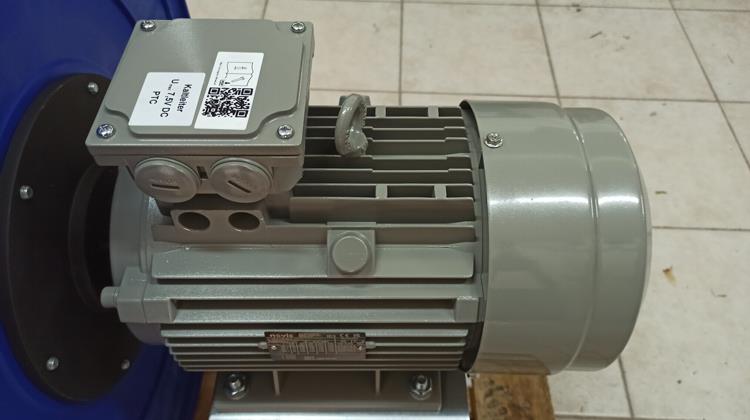

- - Motor protection: PTC resistor
- - Degree of protection: IP55
- - Thermal class: THCL155
- - Min. permitted medium temperature tR(min) : -20 °C
- - Max. permitted medium temperature tR(max) at nmax : 40 °C

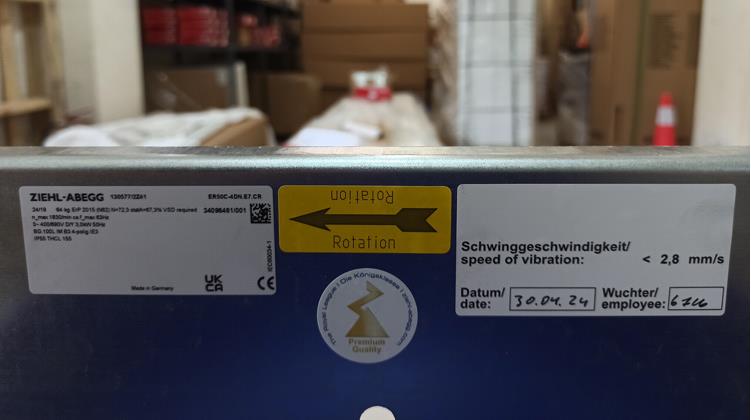

- - Approvals: CE, UKCA
- - Conformity: ErP 2015
- - Nozzle coefficients
- - Standard k 197
- - With guard grille kg 189
- - With inlet guide grille kZAflow 193
