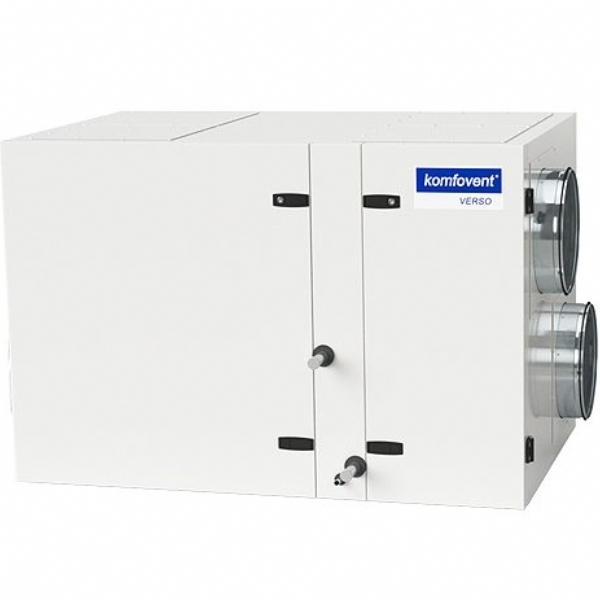

Komfovent VERSO R Universal

Η σειρά VERSO Universal διαθέτει τα προϊόντα, Verso R 1000 U/H/V, Verso R 1300 U/H/V, Verso R 1500 U/H/V, Verso R 1700 U/H/V, Verso R 2000 U/H/V, Verso R 3000 U/H/V και Verso R 4000 U/H/V που είναι τυποποιημένες μονάδες κεντρικού αερισμού με ενσωματωμένο σύστημα ελέγχου C5. Παροχή: 990 – 3500 m³/h.

Unit model		R 1000 U/H/V	R 1300 U/H/V	R 1500 U/H/V	R 1700 U/H/V	R 2000 U/H/V	R 3000 U/H/V	R 4000 U/H/V
Nominal air flow according to ErP 2018	m³/h	990	1380	1530	1780	2170	3450	3500
Panel thickness	mm	50	50	50	50	50	50	50
Unit weight	kg	196	203	206	220	210	456	470
Unit dimensions BxHxL	mm	906x905x1355	906x905x1355	906x905x1355	910x1000x1485	910x1000x1485	1150x1150x2100	1150x1150x2100
Filters dimensions BxHxL	mm	800x400x46	800x400x46	800x400x46	800x450x46	800x450x46	525×510×46	525x510x46
Supply voltage HE	V	400	400	400	400	400	400	400
Supply voltage HW	V	230	230	230	230	230	400	400
Maximal operating current HE	A	7.3	11.7	12.9	12.9	16.9	19.8	31.1
Maximal operating current HW	A	3.3	5.5	6.7	6.7	6.3	7.1	9.7
Maintenance space	mm	800	800	800	800	800	1000	1000
Surroundings	dB(A)	42	48	44	45	46	40	36
Control panels		C5.1	C5.1	C5.1	C5.1	C5.1	C5.1	C5.1
