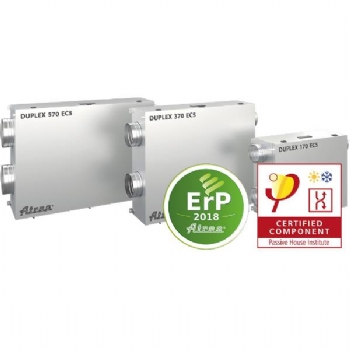

Οι μονάδες DUPLEX EC5, ECV5 έχουν οριζόντια ή κάθετη θέση τοποθέτησης. Το DUPLEX EC5 / ECV5 προσφέρει εξαιρετικές διαστάσεις, ανεμιστήρες EBM, 92 % στροβιλώδη εναλλάκτη ανάκτησης θερμότητας και σύστημα ελέγχου υψηλής ζήτησης με σύνδεση στο διαδίκτυο στάνταρ.
| TECHNICAL DATA EC5 |
170 EC5 |
370 EC5 |
570 EC5 |
| Specific energy class |
- |
A+ 1) |
A+ 1) |
A+ 1) |
| Max. airflow rate 2) |
m3/h |
175 |
370 |
570 |
| Sound power level L WA 3) |
dB |
37 |
38 |
42 |
| Max. heat recovery efficiency |
% |
94 |
95 |
94 |
| Height H |
mm |
290 |
290 |
370 |
| Width S |
mm |
655 |
930 |
930 |
| Length (without ports) L |
mm |
840 |
1116 |
1290 |
| Diameter of connecting ports |
mm |
160 |
200 |
250 |
| Weight |
kg |
39 |
58 |
72 |
| By-pass |
- |
Yes |
Yes |
Yes |
| Voltage |
V |
230 / 50 Hz |
230 / 50 Hz |
230 / 50 Hz |
| Supply air filter class |
- |
G4 (alter. F7) |
G4 (alter. F7) |
G4 (alter. F7) |
| Condensate drain |
mm |
2x 16 (depending on position) |
2x 16 (depending on position) |
2x 16 (depending on position) |
1) All types of the regulation built-in in the unit standardly include a minimum of two inputs for connecting electrical signals arising as a result of human manipulation with lighting, or for connecting other devices that automatically regulate the unit output. These inputs must always be connected, or other types of sensors (e.g. CO , VOC, rH and the like) must be connected instead.
2)The maximum flow rate is set at the pressure disposition of 100 Pa
3)The stated value refers to the reference flow rate i.e. 70 % of the maximum flow rate, and to the pressure disposition of 50 Pa
| Ελάχιστη παροχή αέρα (m3/h) | 50 |
| Μέγιστη παροχή αέρα (m3/h) | 570 |
